How to make an ESP8266 Web Server?

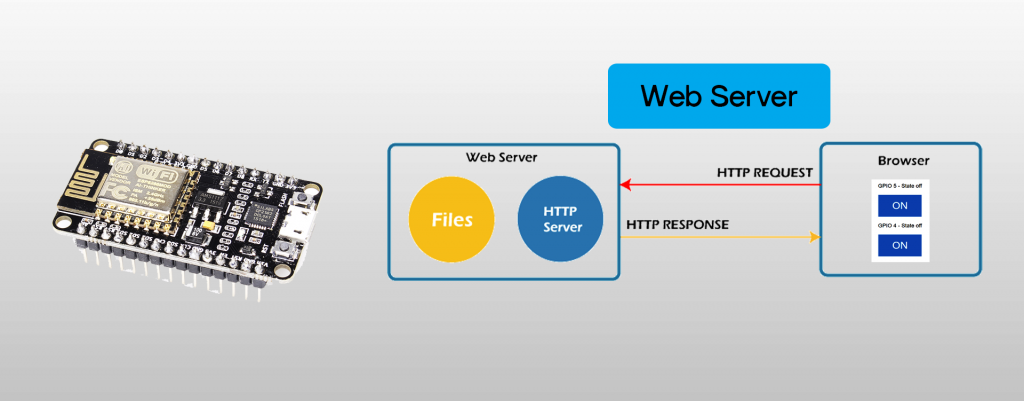

Web Server is a computer software with underlying hardware that accepts requests from HTTP. We are going to build a web server with the ESP8266 NodeMCU that will be able to control two simple LEDs. The Web server will be accessible only on your local network. We will learn about the IoT controls soon.
Introduction
We try to think how wireless devices function. How we can control various devices from any part of the world and so many other questions pop up as we walk in to the modern day technology. Let us take a step ahead in this journey and begin to control 2 small LEDs with the help of your internet browser.
All great things start small. So lets move ahead and understand the underlying concepts. Happy Learning!
Prerequisite
ESP8266 - Web Server Project
The ESP can successfully communicate with other devices on the network, and if your local network is online (if it is connected to the Internet via your modem), the ESP can also communicate with any device on the web!
Components required
- ESP8266
- LED x 2
- 220Ω Resistor x 2
- Breadboard
- Jumper Wires

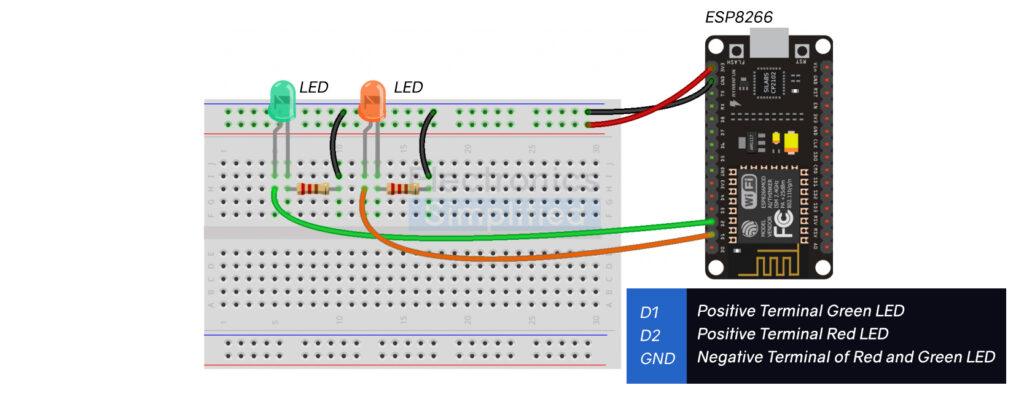

Circuit Diagram
We are going to connect the circuit and then upload the code. In most cases when you master the ESP8266, the best practice would be connecting the circuit after uploading the code. (unless you are working on development purposes)
Working
- The ESP8266 will establish the local connection with your router. (For this you will have to enter your WiFi Name and Password into the below Code).
- The ESP8266 will now be able to communicate with any device on the local network and vice versa.
- So connect another device to your network (phone/tablet/computer/laptop), then open a web browser and type the IP address that is displayed on the Serial Monitor along with the port number. example (IP : 192.168.31.82 then type on the web browser with the port number 81 after a colon as shown in image 3 ---> 192.168.31.82:81)

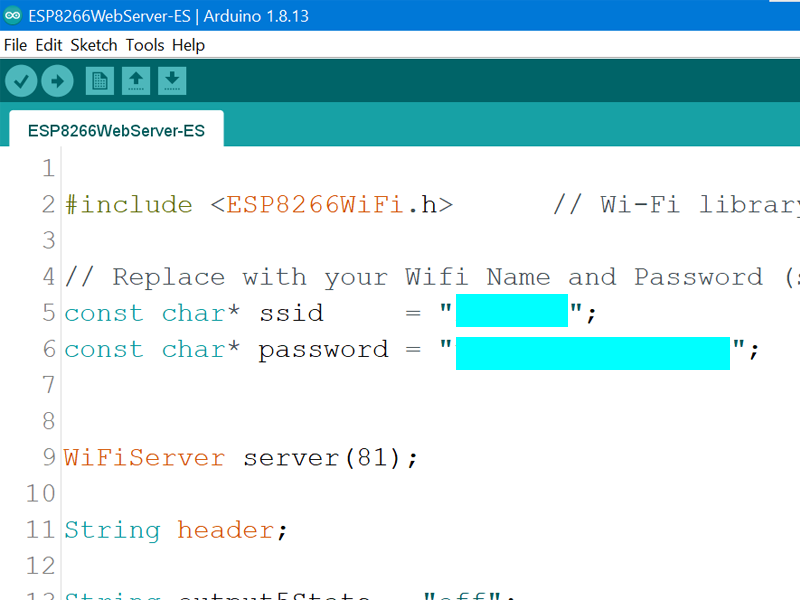

1.Enter your WiFi details

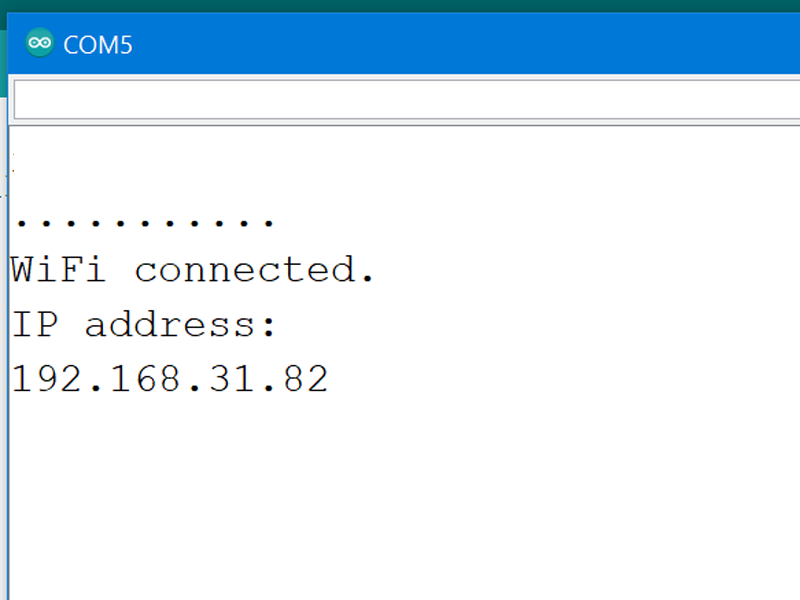

2.Connection Established

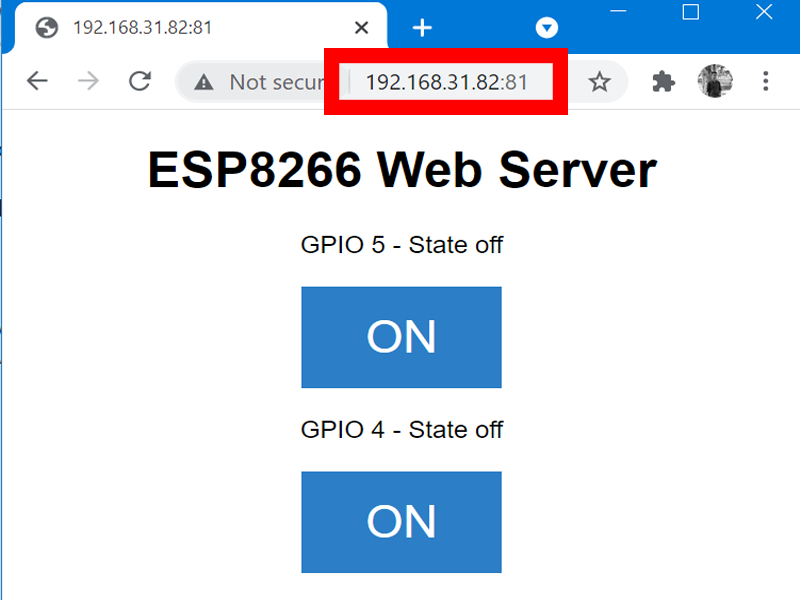

3. Browser Page
Code
/*Read more at electronicssimpliifed.in
This programs illustrates the use of web server using the NodeMCU ESP8266*/
/
#include <ESP8266WiFi.h> // Wi-Fi library
// Replace with your Wifi Name and Password (ssid --> WiFi name)
const char* ssid = "itisfree"; //Enter your WiFi Name
const char* password = "thepasswordiseasy"; //Enter your WiFi Password
WiFiServer server(81); // Set web server port number to 81
String header; // Variable to store the HTTP request
String output5State = "off"; // supporting variables to store the current output state
String output4State = "off";
const int output5 = 5; // Assign output variables to GPIO pins
const int output4 = 4;
unsigned long currentTime = millis(); // Current time
unsigned long previousTime = 0; // Previous time
const long timeoutTime = 2000; // Define timeout time in milliseconds (example: 2000ms = 2s)
void setup() {
Serial.begin(115200);
pinMode(output5, OUTPUT); // GPIO pins as outputs
pinMode(output4, OUTPUT);
digitalWrite(output5, LOW); // Set outputs to LOW
digitalWrite(output4, LOW);
// Connect to Wi-Fi network with SSID and password
Serial.print("Connecting to ");
Serial.println(ssid);
WiFi.begin(ssid, password);
while (WiFi.status() != WL_CONNECTED) {
delay(500);
Serial.print(".");
}
// Print local IP address and start web server
Serial.println("");
Serial.println("WiFi connected.");
Serial.println("IP address: ");
Serial.println(WiFi.localIP());
server.begin();
}
void loop(){
WiFiClient client = server.available(); // Listen for incoming clients
if (client) { // If a new client connects,
Serial.println("New Client."); // print a message out in the serial port
String currentLine = ""; // make a String to hold incoming data from the client
currentTime = millis();
previousTime = currentTime;
while (client.connected() && currentTime - previousTime <= timeoutTime) { // loop while the client's connected
currentTime = millis();
if (client.available()) { // if there's bytes to read from the client,
char c = client.read(); // read a byte, then
Serial.write(c); // print it out the serial monitor
header += c;
if (c == '\n') { // if the byte is a newline character
// if the current line is blank, you got two newline characters in a row.
// that's the end of the client HTTP request, so send a response:
if (currentLine.length() == 0) {
// HTTP headers always start with a response code (e.g. HTTP/1.1 200 OK)
// and a content-type so the client knows what's coming, then a blank line:
client.println("HTTP/1.1 200 OK");
client.println("Content-type:text/html");
client.println("Connection: close");
client.println();
// turns the GPIOs on and off
if (header.indexOf("GET /5/on") >= 0) {
Serial.println("GPIO 5 on");
output5State = "on";
digitalWrite(output5, HIGH);
} else if (header.indexOf("GET /5/off") >= 0) {
Serial.println("GPIO 5 off");
output5State = "off";
digitalWrite(output5, LOW);
} else if (header.indexOf("GET /4/on") >= 0) {
Serial.println("GPIO 4 on");
output4State = "on";
digitalWrite(output4, HIGH);
} else if (header.indexOf("GET /4/off") >= 0) {
Serial.println("GPIO 4 off");
output4State = "off";
digitalWrite(output4, LOW);
}
// Display the HTML web page
client.println("<!DOCTYPE html><html>");
client.println("<head><meta name=\"viewport\" content=\"width=device-width, initial-scale=1\">");
client.println("<link rel=\"icon\" href=\"data:,\">");
// CSS to style the on/off buttons
// Feel free to change the background-color and font-size attributes to fit your preferences
client.println("<style>html { font-family: Helvetica; display: inline-block; margin: 0px auto; text-align: center;}");
client.println(".button { background-color: #2c7ec6; border: none; color: white; padding: 16px 40px;");
client.println("text-decoration: none; font-size: 30px; margin: 2px; cursor: pointer;}");
client.println(".button2 {background-color: #1f2632;}</style></head>");
// Web Page Heading
client.println("<body><h1>ESP8266 Web Server</h1>");
// Display current state, and ON/OFF buttons for GPIO 5
client.println("<p>GPIO 5 - State " + output5State + "</p>");
// If the output5State is off, it displays the ON button
if (output5State=="off") {
client.println("<p><a href=\"/5/on\"><button class=\"button\">ON</button></a></p>");
} else {
client.println("<p><a href=\"/5/off\"><button class=\"button button2\">OFF</button></a></p>");
}
// Display current state, and ON/OFF buttons for GPIO 4
client.println("<p>GPIO 4 - State " + output4State + "</p>");
// If the output4State is off, it displays the ON button
if (output4State=="off") {
client.println("<p><a href=\"/4/on\"><button class=\"button\">ON</button></a></p>");
} else {
client.println("<p><a href=\"/4/off\"><button class=\"button button2\">OFF</button></a></p>");
}
client.println("</body></html>");
// The HTTP response ends with another blank line
client.println();
// Break out of the while loop
break;
} else { // if you got a newline, then clear currentLine
currentLine = "";
}
} else if (c != '\r') { // if you got anything else but a carriage return character,
currentLine += c; // add it to the end of the currentLine
}
}
}
// Clear the header variable
header = "";
// Close the connection
client.stop();
Serial.println("Client disconnected.");
Serial.println("");
}
}
Conclusion
The ESP8266 NodeMCU has successfully established connection with the local router and then now can connect to any device on this network. Enjoy the Tutorial!
